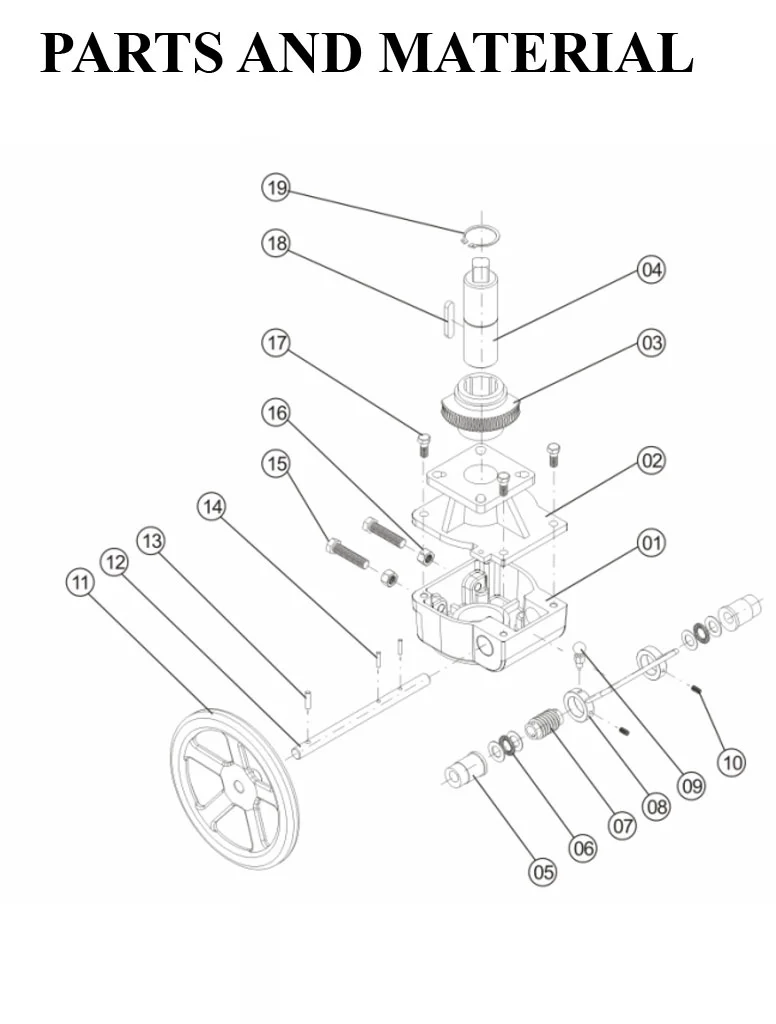

| Item | QTY | NAME | MATERIAL |
| 1 | 1 | Housing | Alloy steel/Carbon steel |
| 2 | 1 | Bracket cap | Alloy steel/Carbon steel |
| 3 | 1 | Worm gear | Nodular cast iron |
| 4 | 1 | Connecting shaft | Carbon steel |
| 5 | 1 | Eccentric bushing | Carbon steel |
| 6 | 1 | Bearings component | Bearing Steel |
| 7 | 1 | Worm | Carbon steel |
| 8 | 1 | Handle | Carbon steel |
| 9 | 1 | Limit components | Carbon steel/Other |
| 10 | 1 | Stoppers crew | Carbon steel |
| 11 | 1 | Handwheel | Carbon steel |
| 12 | 1 | Worm shaft | Carbon steel chrome plated |
| 13 | 1 | Straight pin(Handwheel) | Carbon steel |
| 14 | 1 | Straight pin(Worm gear) | Carbon steel |
| 15 | 1 | Adjustable bolt | Stainless steel |
| 16 | 1 | Nut | Stainless steel |
| 17 | 1 | Bolt | Stainless steel |
| 18 | 1 | Straight key | Carbon steel |
| 19 | 1 | Snap ring | Spring steel |

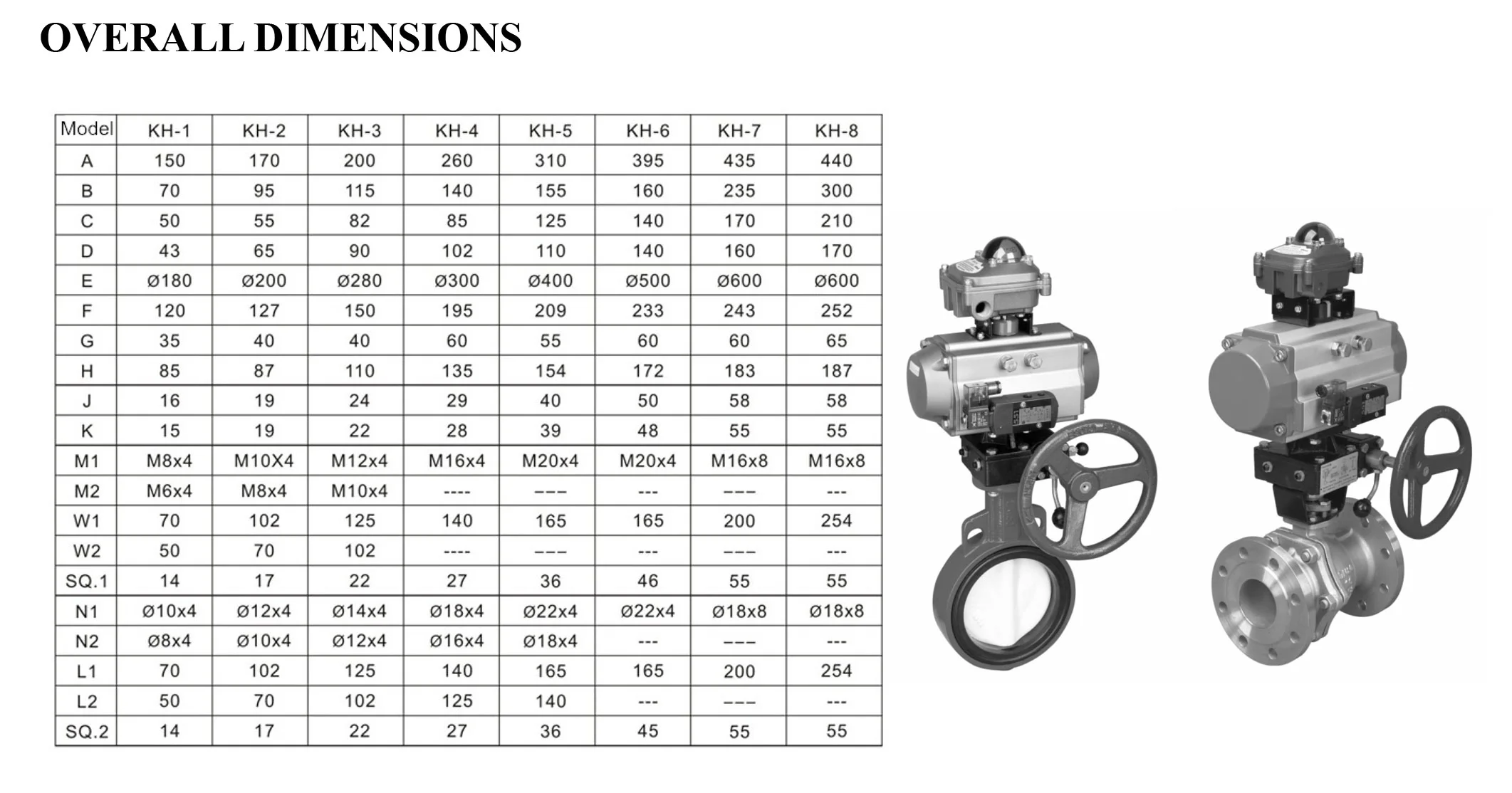

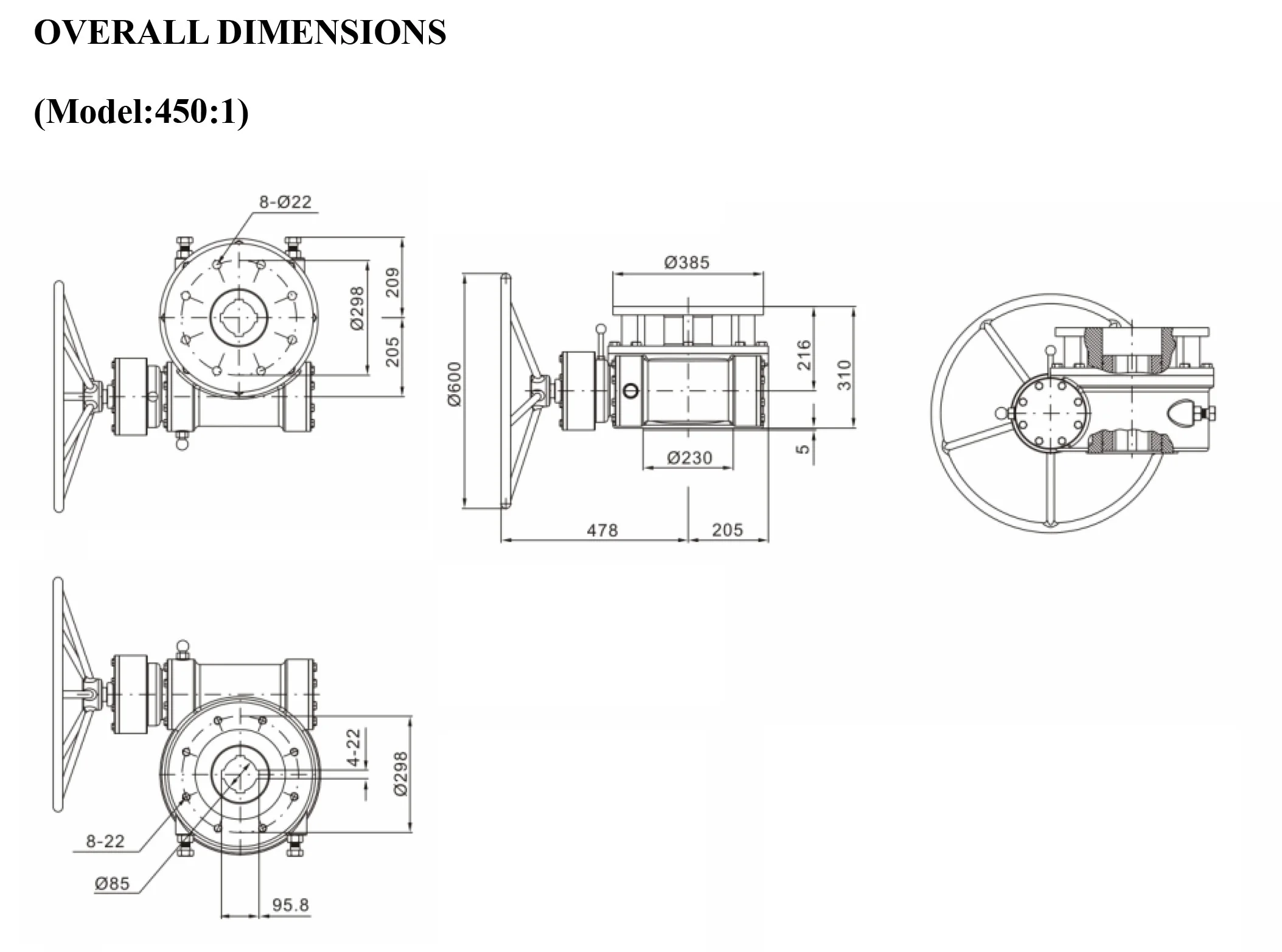

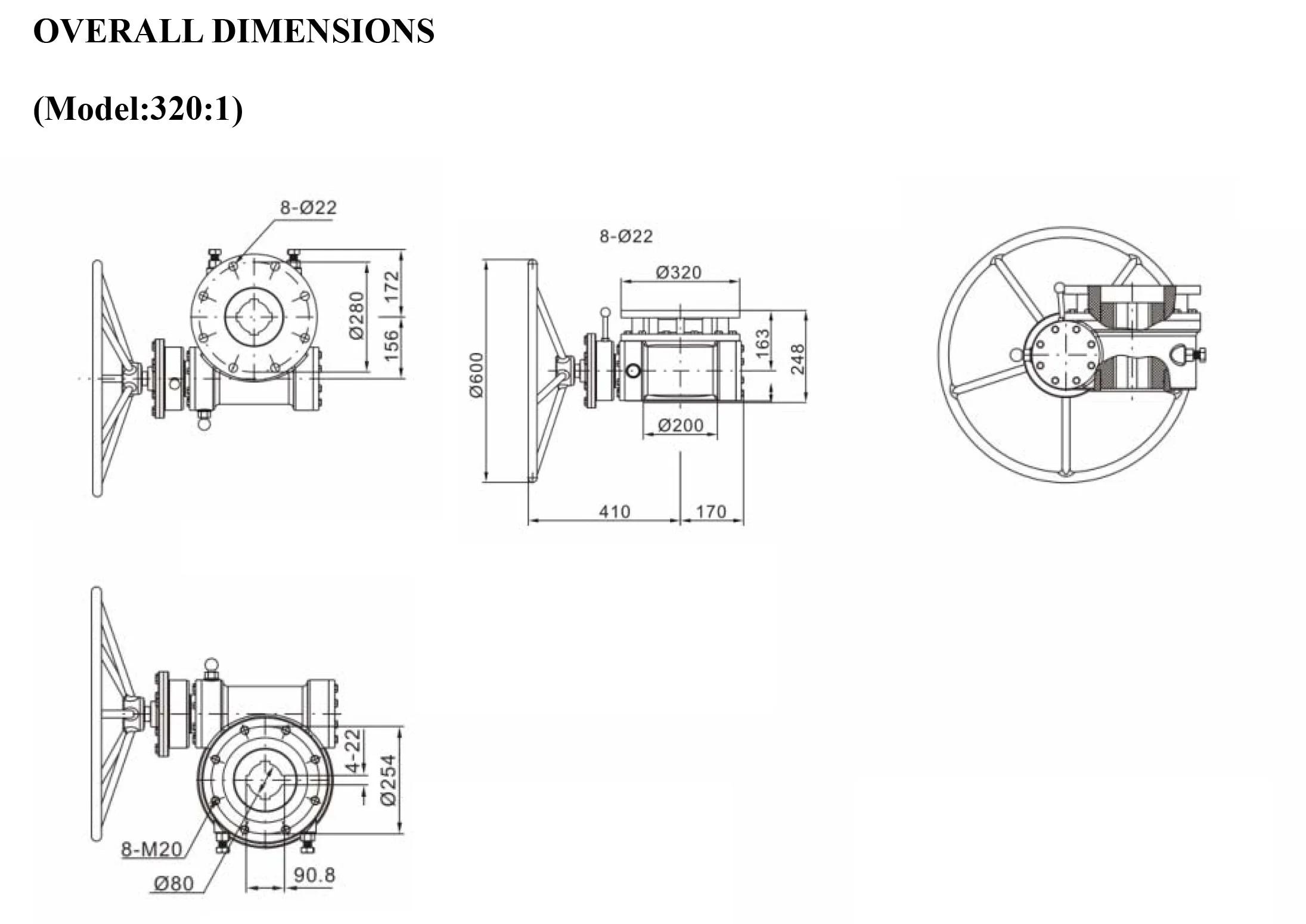

Parameters
| Model | Speed Ratio | InputTorque(N.M) | Output | Dia of Whee | Weight(kg) |
| torque(N.M) | |||||
| KH-1 | 26:01:00 | 50 | 280 | p180 | 2.6 |
| KH-2 | 30:01:00 | 60 | 360 | 200 | 4 |
| KH-3 | 38:01:00 | 90 | 620 | 280 | 6.5 |
| KH-4 | 54:01:00 | 110 | 1310 | 300 | 13 |
| KH-5 | 80:01:00 | 140 | 2600 | 400 | 32 |
| KH-6 | 78:01:00 | 200 | 3500 | 500 | 43 |
| KH-7 | 98:01:00 | 200 | 4200 | 600 | 65 |
| KH-8 | 100:01:00 | 200 | 5500 | 600 | 115 |

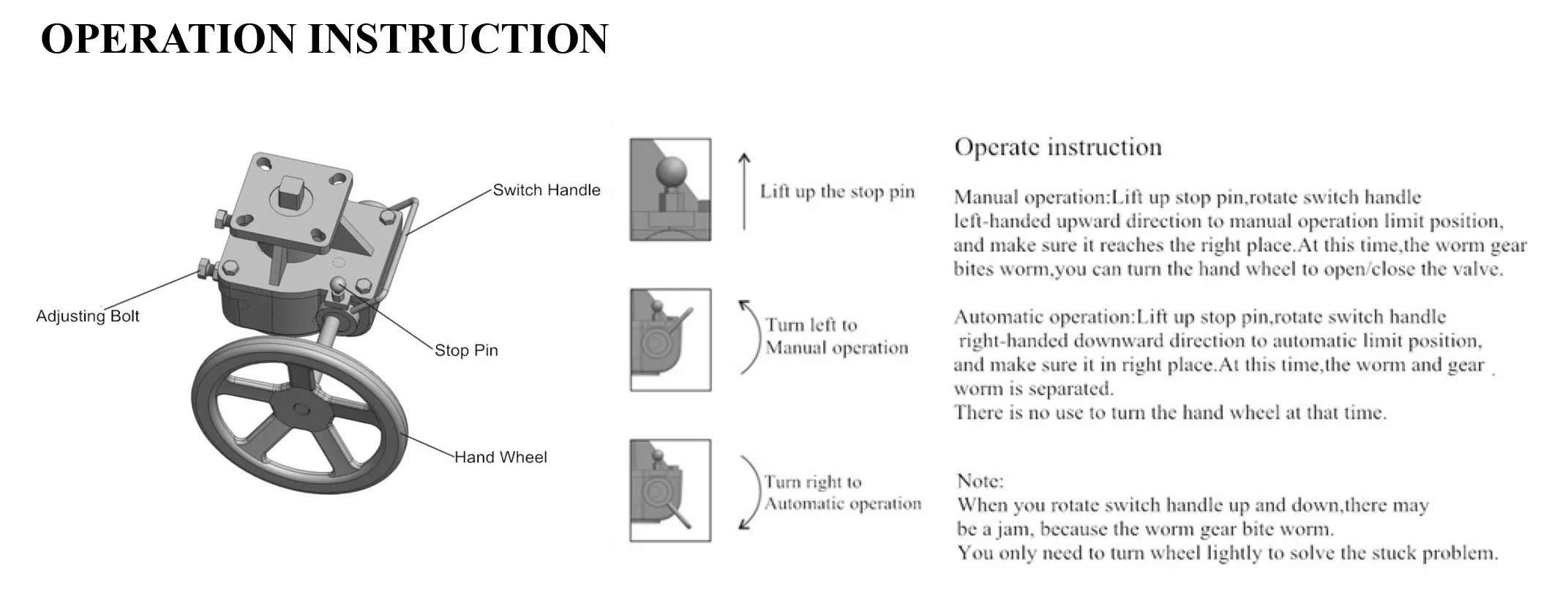

Confirm the Right KH Series Manual Override
Send the valve type, size and torque, the air supply or voltage, and whether it should fail open, fail close or stay in place. The quotation is confirmed against that duty.
